Capacitor Maze

Wire capacitors into a network. Predict each charge before the battery fills them.

Physics · Class 12 · Capacitor networks · 10 simulations. For JEE, NEET and your boards.

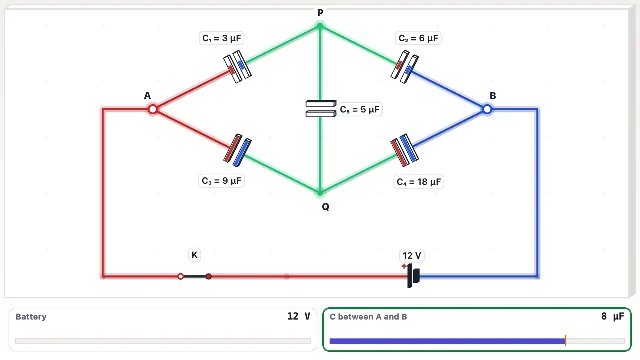

A picture of the Capacitor Maze simulation

Start Capacitor Maze →

What you'll learn

  1. Side by side: Side by side: one voltage, the charges add
  2. In a line: In a line: one charge, the voltages add
  3. Fold the network: Fold it, one step at a time
  4. Find x: Go back from the charge
  5. Balanced bridge: A balanced bridge: the middle stays empty
  6. Bridge out of balance: An unbalanced bridge: balance the charge at P and Q
  7. A slab inside the maze: Slab first, then the network
  8. Share the charge: Joined capacitors share one voltage
  9. Heat in the wire: Sharing charge turns energy into heat
  10. Throw the switch: An isolated point keeps its charge
